• Accents, interior Titanium Nova Silver-colored air outlets, center control stack, chrome door handle bezels and uplevel instrument cluster bezel
• Air conditioning, single-zone manual
• Assist handle, front passenger and rear outboard
• Coat hooks, driver- and passenger-side rear
• Cruise control
• Floor covering, Ebony carpeting
• Floor mats, rubberized-vinyl front and rear
• Mirror, inside rearview auto-dimming with compass and outside temperature display
• Power outlets, 2 auxiliary with covers, 12-volt

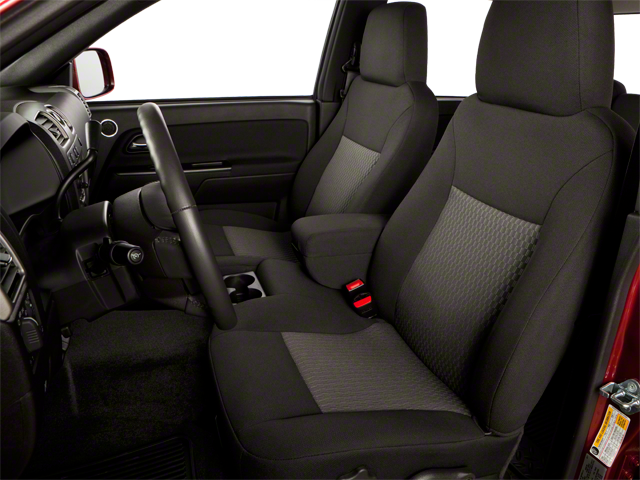

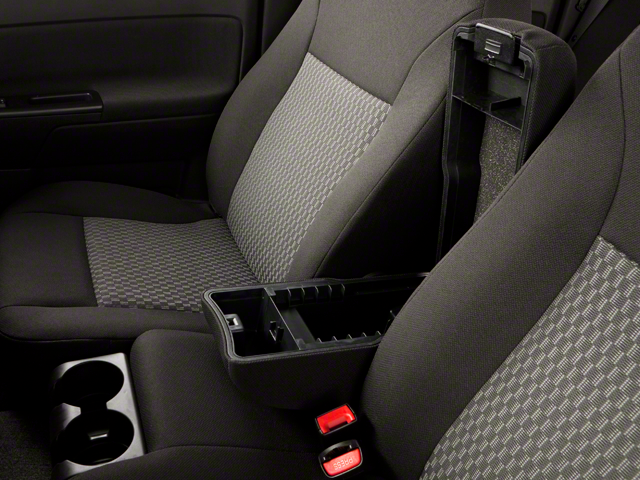

• Seats, front 60/40 split-bench includes armrest with integral storage and dual cup holders

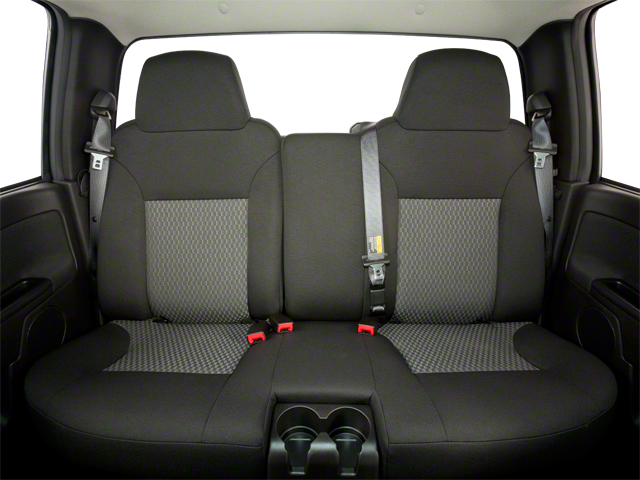

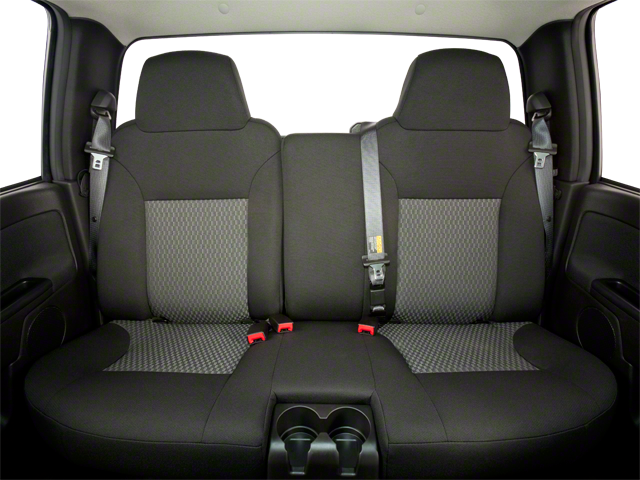

• Seats, second row 60/40 split-bench, flat-folding
• Steering column, Tilt-Wheel

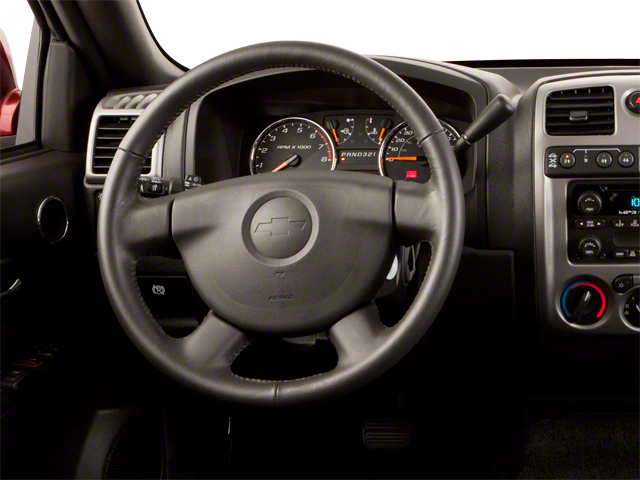

• Steering wheel, leather-wrapped
• Theft-deterrent system, vehicle, PASSlock
• Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror
• Warning tones headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active

• Alternator, 125 amps
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Brakes, 4-wheel antilock, front disc/rear drum
• Rear axle, 3.73 ratio
• Rear wheel drive
• Steering, power, rack-and-pinion
• Suspension Package, Standard
• Suspension, front independent coil springs (2WD models only)
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs

• Daytime Running Lamps with automatic exterior lamp control
• Door locks, child security rear
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Safety belts, 3-point, driver and right-front passenger, adjustable (center front position lap belt with bench seat only)
• Safety belts, 3-point, rear, all seating positions
• StabiliTrak (Includes traction control)
• Tire Pressure Monitor

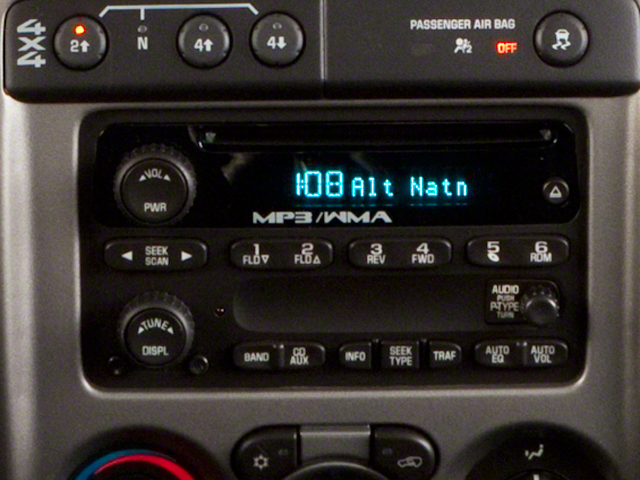

AUDIO SYSTEM, AM/FM STEREO

• with CD/MP3 player
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• automatic volume and TheftLock (STD)

SEATS, FRONT 60/40 SPLIT-BENCH

• includes armrest with integral storage and dual cup holders (STD)

WHEELS, 4-16" X 6" (40.6 CM X 15.2 CM) ALUMINUM

• (STD)

TIRE, COMPACT SPARE

• (STD)

TRAILERING EQUIPMENT

• Trailering equipment
• includes (VR4) trailer hitch (with weight distributing platform) and (UY7) 7-pin sealed trailer wiring connector

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE

• (STD)

LT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

TIRES, P215/70R16 ALL-SEASON, BLACKWALL

• (STD)

EBONY, DELUXE CLOTH

• includes manual recliners with integral outboard head restraints

GVWR, 5000 LBS. (2268 KG)

• (2WD models only. Refer to the Engine and Axle section for compatibility requirements. Must specify)

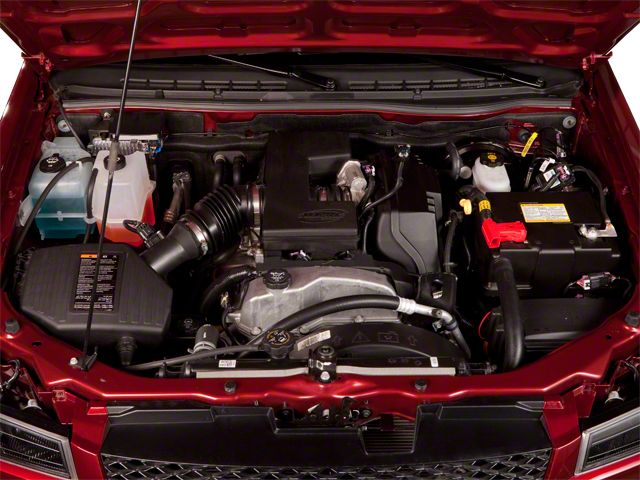

ENGINE, 2.9L DOHC 4-CYLINDER SFI

• (185 hp [137.9 kW] @ 5600 rpm)
• 190 lb-ft [263.2 Nm] @ 2800 rpm) (STD)

• AUDIO SYSTEM AM/FM STEREO with CD/MP3 player seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume and TheftLock (STD)
• GLASS SOLAR-RAY DEEP-TINTED
• BLACK
• SEATS FRONT 60/40 SPLIT-BENCH includes armrest with integral storage and dual cup holders (STD)
• TRAILER HITCH WEIGHT DISTRIBUTION PLATFORM
• WHEELS 4-16" X 6" (40.6 CM X 15.2 CM) ALUMINUM (STD)
• REAR AXLE 3.73 RATIO
• TIRE COMPACT SPARE (STD)
• TRAILERING EQUIPMENT Trailering equipment includes (VR4) trailer hitch (with weight distributing platform) and (UY7) 7-pin sealed trailer wiring connector
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE (STD)
• LT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• TRAILER WIRING 7-PIN SEALED CONNECTOR
• TIRES P215/70R16 ALL-SEASON BLACKWALL (STD)
• EBONY DELUXE CLOTH includes manual recliners with integral outboard head restraints
• GVWR 5000 LBS. (2268 KG) (2WD models only. Refer to the Engine and Axle section for compatibility requirements. Must specify)
• ENGINE 2.9L DOHC 4-CYLINDER SFI (185 hp [137.9 kW] @ 5600 rpm) 190 lb-ft [263.2 Nm] @ 2800 rpm) (STD)
• Keyless Entry
• Power Door Locks
• Power Mirror(s)

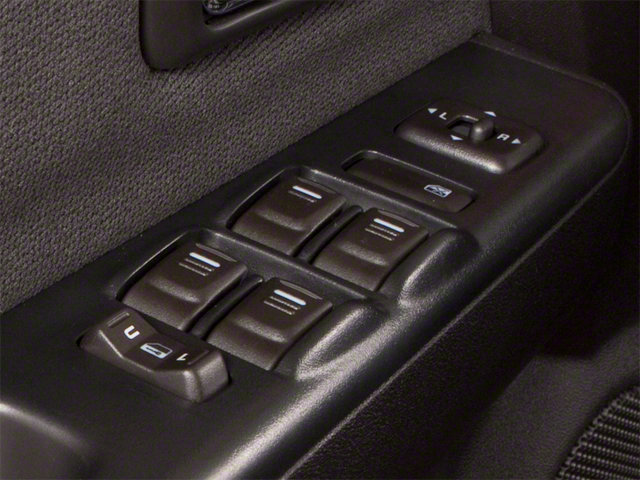

• Power Windows
• Auto-Dimming Rearview Mirror
• Rear Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Temporary Spare Tire
• Fog Lamps
• Privacy Glass
• Power Mirror(s)
• Intermittent Wipers
• Bed Liner
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Leather Steering Wheel
• Adjustable Steering Wheel
• Immobilizer
• Cruise Control
• A/C
• Power Outlet
• Auto-Dimming Rearview Mirror
• Passenger Vanity Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Requires Subscription
• Tire Pressure Monitor
• Child Safety Locks

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 18.6
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 37.0
• Tailgate Width (in): 52.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 125
• Emissions
• EPA Greenhouse Gas Score: 5
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 22.6
• Front Bumper to Back of Cab (in): 137.3
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): 7.7
• Ground to Top of Load Floor (in): 35.7
• Height, Overall (in): 65.2
• Length, Overall w/o rear bumper (in): 207.1
• Overhang, Front (in): 33.9
• Wheelbase (in): 126.0
• Width, Max w/o mirrors (in): 67.6
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: Inboard LH Frame Rail
• Interior Dimensions
• Front Head Room (in): 39.3
• Front Hip Room (in): 53.3
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Passenger Capacity: 6
• Second Head Room (in): 38.3
• Second Hip Room (in): 52.9
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 57.1
• Mileage
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 25
• Fuel Economy Est-Combined (MPG): 19
• Steering
• Steering Ratio (:1), At Lock: 3.31
• Steering Ratio (:1), On Center: 17.4
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 44.3
• Summary
• Body Code: E63
• Body Style: Crew Cab
• Vehicle Name: Chevrolet Colorado
• Suspension
• Axle Capacity - Front (lbs): 2633
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Spring Capacity - Front (lbs): 2633
• Spring Capacity - Rear (lbs): 2900
• Stabilizer Bar Diameter - Front (in): 1.10
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 1633
• Front Tire Order Code: QRD
• Front Tire Size: P215/70R16
• Rear Tire Capacity (lbs): 1633
• Rear Tire Order Code: QRD
• Rear Tire Size: P215/70R16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 1633
• Spare Tire Order Code: ZCY
• Spare Tire Size: Compact
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 315
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2100
• Weight Information
• Curb Weight - Front (lbs): 2048
• Curb Weight - Rear (lbs): 1680
• Gross Axle Wt Rating - Front (lbs): 2633
• Gross Axle Wt Rating - Rear (lbs): 2896
• Gross Combined Wt Rating (lbs): 7000
• Gross Vehicle Weight Rating Cap (lbs): 5000
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 16 x 6
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 16 x 6
• Spare Wheel Material: Steel
• Spare Wheel Size (in): Compact
